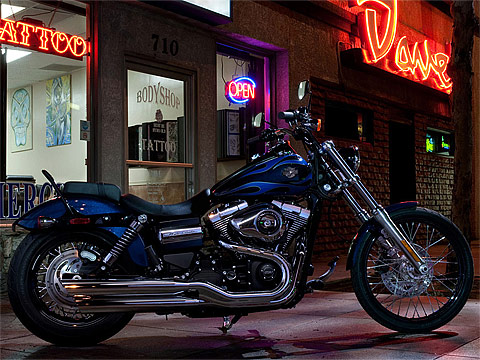

2012 Harley-Davidson FXDWG Dyna Wide Glide
Harley-Davidson pictures, specifications, insurance, accident lawyers information
Harley-Davidson pictures, specifications, insurance, accident lawyers information
2012 Harley-Davidson FXDWG Dyna Wide Glide
Click Thumbnail to download (size 1600 x 1200 pixels)
2012 Harley-Davidson FXDWG Dyna Wide Glide Review
Low-down and beefy, it's got old-school chopper looks with the comfort of a modern ride
Re-introduced in 2010, the Dyna® Wide Glide® motorcycle is all about attitude. Its tough, dark styling and retro feel, along with a retro price tag, give riders the confidence to sit low and stretch out. The Wide Glide® is raw and true to its roots with a chopped rear fender, black rims on 40-spoke laced wheels, a black tank console, “Tommy Gun” exhaust, beefy, raked-out forks and a swept back sissy bar. Throw in the old-school flame paint scheme and heads are sure to turn. The lowered suspension, internally-wired handlebar with 4-inch riser and forward foot controls offer an awesome ride and the sticker price provides amazing value.
2012 Harley-Davidson FXDWG Dyna Wide Glide Model Highlights
NEW Rubber-mounted Twin Cam 103™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 100 ft. lbs. of torque
NEW Optional Security Package bundling Anti-lock Braking System (ABS) and a Smart Security System for greater value
NEW Paint color options
- Black powder-coated powertrain with chrome covers
- Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
- 4.7-gallon Street Bob®-style fuel tank, raised at the front .75-inch
- 40-spoke laced steel wheels with black rims
- 21-inch front wheel
- Front and rear suspension lowered one inch
- 34 degree fork angle
- Wide polished aluminum triple clamps
- Chopped rear fender with chrome supports
- Low solo seat with separate passenger pillion
- Stainless steel internally-wired handlebar on four-inch black riser
- Wrinkle-black battery box and fender struts
- Black mirrors and headlight bucket
- Black one-piece wire sissy bar
- Dual red LED lights combine the stop/turn/tail functions
- Side-mounted license plate
- Low-profile tank console with electronic speedometer
2012 Harley-Davidson FXDWG Dyna Wide Glide Features and Benefits
- NEW Rubber-mounted Twin Cam103™ V-Twin engine
- 6-speed Cruise Drive® transmission
- Exposed under-seat battery box
- Exposed rear coil-over shock absorbers
- Forward-mounted rider footpegs with brake and shift levers
- Optional Harley-Davidson® Smart Security System with hands-free security fob
Specifications
US MSRP Price: Vivid Black $14,849, Two-Tones $15,554 USD
Dimensions
Length 94.0 in. (2388 mm)
Overall Width 37.2 in. (945 mm)
Overall Height 47.8 in. (1214 mm)
Seat Height:
- Laden2 25.5 in. (648 mm)
- Unladen 26.7 in. (678 mm)
Ground Clearance 4.2 in. (107 mm)
Rake (steering head) 34°
Fork Angle 36°
Trail 5.2 in. (132 mm)
Wheelbase 68.3 in. (1735 mm)
Tires (Michelin® Scorcher® “31” front and rear):
- Front – Scorcher® “31” 80/90-21 54H
- Rear – Scorcher® “31” 180/60B17 75V
Fuel Capacity 4.7 gal. (17.8 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.0 qt. (.95 L)
Weight:
- As Shipped 650 lbs. (295.0 kg)
- In Running Order 668 lbs. (303.0 kg)
- Gross Vehicle Weight Rating 1085 lbs. (492.2 kg)
- Gross Axle Weight Rating:
- Front 390 lbs. (176.9 kg)
- Rear 695 lbs. (315.3 kg)
Engine
Engine Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump
Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
- 1st 9.311
- 2nd 6.454
- 3rd 4.793
- 4th 3.882
- 5th 3.307
- 6th 2.79
Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels4: Black Steel Laced
- Front 21 in. x 2.15 in. (533 mm x 55 mm)
- Rear 17 in. x 4.5 in. (432 mm x 114 mm)
Brakes:
- Caliper Type 4-piston front, and 2-piston torque-free floating rear
- Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
- Front (floating) 11.8 in. x .2 in. (300 mm x 5.1 mm)
- Rear 11.5 in. x .23 in. (292 mm x 5.8 mm)
- Anti-lock Braking System: Available
Suspension Travel:
- Front Wheel 5 in. (127 mm)
- Rear Wheel 3.1 in. (78.74 mm)
Performance
Engine Torque5 (per J1349):
- North America 100 ft. lbs. @ 3500 RPM (136 Nm @ 3500 RPM)
Lean Angle (per J1168):
- Right 28.4°
- Left 31.9°
Fuel Economy6 (EPA urban/highway test) 42 mpg (5.6 L/100 km)
COLOR OPTIONS
Solids
- Vivid Black
Two-Tones
- Vivid Black with Flames
- Big Blue Pearl with Flames
- Ember Red Sunglo with Flames
U.S. MSRP
Vivid Black $14,849
Two-Tones $15,554
Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
- Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
- Rear Turn Signal Lights 9W/43W self-canceling
- Indicator Lamps: High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system7 (optional), 6-speed, low fuel warnings
Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter
