2011 FLHRC Road King Classic motorcycle accident lawyers info

Harley Davidson
FLHRC Road King Classic (2011)
- Features and Specifications -
Pictures >

Harley-Davidson FLHRC Road King Classic Model Highlights
NEW PowerPak setup with large, 1690 cc, Twin Cam 103™ engine, Anti-lock Braking System (ABS), and Harley-Davidson® Smart Security System with hands-free fob
NEW Sculpted seat for added comfort and easier straddling
NEW Tank medallion styling
NEW Paint color options
NEW Black powder-coated powertrain with chrome covers
o Chrome 2-1-2 dual exhaust with slash-up end caps
o Chrome, Laced Steel wheels with wide-whitewall tires
o Chrome, nostalgic fuel tank console with electronic speedometer
o Deep FL front fender with trim
o Clean rear fender with deluxe trim
o Stainless steel, ergonomic handlebar
o One-piece, two-up Road King® seat with tooled leather trim and chrome accents
o Clear, large Lexan® quick-release detachable windshield
o Tooled, leather-wrapped hard saddlebags; 1.85 cu. ft. volume
o Large Hiawatha headlight and chrome nacelle
o Auxiliary passing lights
o Electronic cruise control

Key Harley-Davidson FLHRC Road King Classic Key Features
The Road King® Classic model takes the nostalgic look and feel of the Road King a little further with extra details for this road-worthy touring bike, like leather-wrapped saddlebags, nostalgic chrome fuel tank console, tooled metal detailing on the fender, tank, seat and bags, and chrome laced wheels with wide whitewall tires.

The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today's powerful engines.

o Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
o 6-Speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
o Dunlop® "Multi-Tread" rear tire construction extends tire life by 25 percent
o Brembo® 4-piston front and rear caliper with dual front rotor brake system
o Air-adjustable rear shocks
o Full-length rider footboards
o Height-adjustable passenger footboards
o Six-gallon fuel tank
o Optional Original Equipment Custom Color paint program

Specifications
U.S. MSRP - Vivid Black $19,499. Solids $19,874. Two-Tone $20,224. Custom Colors $20,394

DIMENSIONS
Length 94.2 in. (2393 mm)
Overall Width 37.5 in. (953 mm)
Overall Height 55.1 in. (1400 mm)
Seat Height:
• Laden2 26.7 in. (678 mm)
• Unladen 28.1 in. (714 mm)

Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series, bias wide whitewall):
• Front – D408F WWW 130/90B16 67H
• Rear – D407 WWW 180/65B16 81H

Fuel Capacity 6.0 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
• As Shipped 773 lbs. (350.6 kg)
• In Running Order 810 lbs. (367.4 kg)
• Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
• Gross Axle Weight Rating
• Front 500 lbs. (226.8 kg)
• Rear 927 lbs. (420.5 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.593
• 2nd 6.65
• 3rd 4.938
• 4th 4.0
• 5th 3.407
• 6th 2.875

CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels5 (Chrome, Profile
Laced Aluminum option):
Chrome, Laced Steel
• Front 16 in. x 3 in. (432 mm x 76 mm)
• Rear 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type (diameter x width): Patented, fixed rotors
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4.6 in. (117 mm)
• Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 102 ft. lbs. @ 3500 RPM (138 Nm @ 3500 RPM)
Lean Angle:
• Right 33°
• Left 31°

Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warnings, cruise control, ABS (optional)

COLOR OPTIONS
Solids
• Vivid Black
• Brilliant Silver Pearl
• Cool Blue Pearl

Two-Tone
• Dark Candy Rootbeer/
Light Candy Rootbeer

Custom Colors
• Psychedelic Purple/
Vivid Black




Auto Accident Lawyers Information

Law offices of Mark E. Salomone
www.marksalomone.com


Mark E. Salomone Means Business
Our Springfield, Boston, and Worcester-area Personal Injury Lawyers Will Fight for You.

In Massachusetts and throughout New England, the Law Offices of Mark E. Salomone is known for providing aggressive, powerful representation, and opposing counsel know that our personal injury lawyers mean business. With our respected trial attorneys on your side, you can be sure that your rights will be protected with fierce, unrelenting determination.

When you have suffered serious injury due to the negligence of another party, it is important to have someone on your side that is ready to fight for the compensation you deserve. Our personal injury lawyers will get you the money to which you are entitled so that you can focus on your recovery and carry on with your life. And, you do not pay unless we win.

We will fight for compensation for your:

= Car and truck accidents = Motorcycle accidents = Dog attacks = Slip and falls = Medical malpractice = Brain injury = Spinal cord injuries = Workers' compensation = Other personal injuries =

Personal Injury Law Articles
Personal Injury, Accidents & Personal Injury, Car/Auto Accidents, Dangerous Products/Product Liability, Mass Accidents, Medical Malpractice

Contact the Law Offices of Mark E. Salomone to consult with one of our experienced personal injury lawyers. With decades of collective trial experience and an impressive record of verdicts and settlements, we are proud to serve residents of Springfield, Boston, Worcester, and the entire Commonwealth of Massachusetts.

Our personal injury lawyers are also pleased to work with out-of-state clients. Wherever you are from, if you have been injured by someone else's wrongful actions, you can trust us to fight for your rights and work tirelessly to secure the compensation that you need - and deserve

U.S. Car Insurance Companies >


FLSTSB Cross Bones wallpapers. Motorcycle accident lawyers.


FLSTSB Cross Bones (2011) Pictures.
- .. -
Harley Davidson
FLSTSB Cross Bones (2011)

HARLEY DAVIDSON Models >

Click Thumbnail to download (size 1600 x 1200 pixels)



With an authenticity that could only come from Harley-Davidson, the Cross Bones® combines the pure styling of a historic bobber with modern power and technology. Harkening back to a time when returning soldiers stripped parts off their bikes for performance, and sought fat gas tanks to ride across the country, everything about the Cross Bones is true. Starting with the Springer® front end, chopped front fender and laced wheels, all the way through the sprung solo seat and deluxe, slash-cut exhaust, the styling inspires thoughts of rugged, empty backroads. The distinctive, authentic look also boasts a smooth ride powered by the 1584 cc, counter-balanced Twin Cam 96B® engine and 6-Speed Cruise Drive® Transmission.........Features and pecifications >



Auto Accident Lawyers Information

Law offices of Mark E. Salomone
www.marksalomone.com


Mark E. Salomone Means Business
Our Springfield, Boston, and Worcester-area Personal Injury Lawyers Will Fight for You.

In Massachusetts and throughout New England, the Law Offices of Mark E. Salomone is known for providing aggressive, powerful representation, and opposing counsel know that our personal injury lawyers mean business. With our respected trial attorneys on your side, you can be sure that your rights will be protected with fierce, unrelenting determination.

When you have suffered serious injury due to the negligence of another party, it is important to have someone on your side that is ready to fight for the compensation you deserve. Our personal injury lawyers will get you the money to which you are entitled so that you can focus on your recovery and carry on with your life. And, you do not pay unless we win.

We will fight for compensation for your:

= Car and truck accidents = Motorcycle accidents = Dog attacks = Slip and falls = Medical malpractice = Brain injury = Spinal cord injuries = Workers' compensation = Other personal injuries =

Personal Injury Law Articles
Personal Injury, Accidents & Personal Injury, Car/Auto Accidents, Dangerous Products/Product Liability, Mass Accidents, Medical Malpractice

Contact the Law Offices of Mark E. Salomone to consult with one of our experienced personal injury lawyers. With decades of collective trial experience and an impressive record of verdicts and settlements, we are proud to serve residents of Springfield, Boston, Worcester, and the entire Commonwealth of Massachusetts.

Our personal injury lawyers are also pleased to work with out-of-state clients. Wherever you are from, if you have been injured by someone else's wrongful actions, you can trust us to fight for your rights and work tirelessly to secure the compensation that you need - and deserve

U.S. Car Insurance Companies >


Friday, October 15, 2010

2011 FLSTSB Cross Bones specification. Insurance information

Harley Davidson
FLSTSB Cross Bones (2011)
- Features and Specifications -
Pictures >

Harley-Davidson FLSTSB Cross Bones Model Highlights
NEW Hand controls with fewer wires
NEW Odometer trip switch
NEW Single button hazzard warning
NEW Larger odometer readout with gear and RPM display
o Fuel tank sender for accurate fuel-level readings
o Black powder-coated powertrain with polished covers
o Deluxe exhaust with slash-cut mufflers
o Gloss-black painted Springer front end with chrome springs
o Laced Steel wheels with gloss-black rims
o 200 mm rear tire
o Black headlamp shell
o Oil tank with Willie G. signed skull graphic
o Gloss-black cat-eye tank console with retro speedometer face
o Gloss-black mini ape-hanger handlebar
o Half-round footboards
o Sprung solo seat
o Gloss-black round air cleaner cover
o Chopped front fender
o Bobtail rear fender with black supports

Key Harley-Davidson FLSTSB Cross Bones Key Features
With an authenticity that could only come from Harley-Davidson, the Cross Bones® combines the pure styling of an historic bobber with modern power and technology.

Harkening back to a time when returning soldiers stripped parts off their bikes for performance, and sought fat gas tanks to ride across the country, everything about the Cross Bones is true. Starting with the Springer® front end, chopped front fender and laced wheels, all the way through the sprung solo seat and deluxe, slash-cut exhaust, the styling inspires thoughts of rugged, empty backroads.

But that distinctive, authentic look also boasts a smooth ride powered by the 1584 cc, counter-balanced Twin Cam 96B® engine and 6-Speed Cruise Drive® transmission. Form and function blend in a way that is truly and uniquely Harley-Davidson.

o Rigid-mounted, counter-balanced Twin Cam 96B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
o 6-Speed Cruise Drive® Transmission
o Horseshoe oil tank
o Five-gallon fuel tank
o Optional Harley-Davidson® Smart Security System with hands-free security fob

Specifications
U.S. MSRP - Vivid Black $16,999. Solids $17,374

DIMENSIONS
Length 90.5 in. (2299 mm)
Overall Width 38.1 in. (968 mm)
Overall Height 52.6 in. (1336 mm)
Seat Height:
• Laden2 26.6 in. (676 mm)
• Unladen 30.1 in. (765 mm)
Ground Clearance 4.9 in. (124 mm)
Rake (steering head) 32.5°
Fork Angle 24.2°
Trail 6.3 in. (160 mm)
Wheelbase 64.5 in. (1638 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear):
• Front – D402F MT90B16 72H
• Rear – D401 200/55R17 78V
Fuel Capacity 5.0 gal. (18.9 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3
1.0 qts.
Weight:
• As Shipped 700 lbs. (318.0 kg)
• In Running Order 731 lbs. (332.0 kg)
• Gross Vehicle Weight Rating 1150 lbs. (522.0 kg)
• Gross Axle Weight Rating:
• Front 426 lbs. (193.0 kg)
• Rear 724 lbs. (328.0 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 96BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiber element, washable
Lubrication System Pressurized, dry-sump

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.311
• 2nd 6.454
• 3rd 4.793
• 4th 3.882
• 5th 3.307
• 6th 2.79

CHASSIS
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks Black leading link for Springer® model
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Black, Laced Steel
• Front 16 in. x 3 in. (406 mm x 76 mm)
• Rear 17 in. x 6 in. (432 mm x 152 mm)
Brakes:
• Caliper Type Single-piston front and 2-piston rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .23 in. (292 mm x 6 mm)
Suspension Travel:
• Front Wheel 3.8 in. (97 mm)
• Rear Wheel 3.6 in. (91 mm)

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 93.7 ft. lbs. @ 3000 RPM (127 Nm @ 3000 RPM)
Lean Angle:
• Right 27.2°
• Left 27.7°

Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, front fender running lights, neutral, low oil pressure, turn signals,
engine diagnostics, security system8 (optional), 6-speed, low fuel warnings

COLOR OPTIONS
Solids
• Vivid Black
• Cool Blue Pearl
• Sedona Orange
• Black Denim




Auto Accident Lawyers Information

Law offices of Mark E. Salomone
www.marksalomone.com


Mark E. Salomone Means Business
Our Springfield, Boston, and Worcester-area Personal Injury Lawyers Will Fight for You.

In Massachusetts and throughout New England, the Law Offices of Mark E. Salomone is known for providing aggressive, powerful representation, and opposing counsel know that our personal injury lawyers mean business. With our respected trial attorneys on your side, you can be sure that your rights will be protected with fierce, unrelenting determination.

When you have suffered serious injury due to the negligence of another party, it is important to have someone on your side that is ready to fight for the compensation you deserve. Our personal injury lawyers will get you the money to which you are entitled so that you can focus on your recovery and carry on with your life. And, you do not pay unless we win.

We will fight for compensation for your:

= Car and truck accidents = Motorcycle accidents = Dog attacks = Slip and falls = Medical malpractice = Brain injury = Spinal cord injuries = Workers' compensation = Other personal injuries =

Personal Injury Law Articles
Personal Injury, Accidents & Personal Injury, Car/Auto Accidents, Dangerous Products/Product Liability, Mass Accidents, Medical Malpractice

Contact the Law Offices of Mark E. Salomone to consult with one of our experienced personal injury lawyers. With decades of collective trial experience and an impressive record of verdicts and settlements, we are proud to serve residents of Springfield, Boston, Worcester, and the entire Commonwealth of Massachusetts.

Our personal injury lawyers are also pleased to work with out-of-state clients. Wherever you are from, if you have been injured by someone else's wrongful actions, you can trust us to fight for your rights and work tirelessly to secure the compensation that you need - and deserve

U.S. Car Insurance Companies >


Thursday, October 14, 2010

FXCWC Rocker C motorcycle pictures. Auto accident lawyers info.

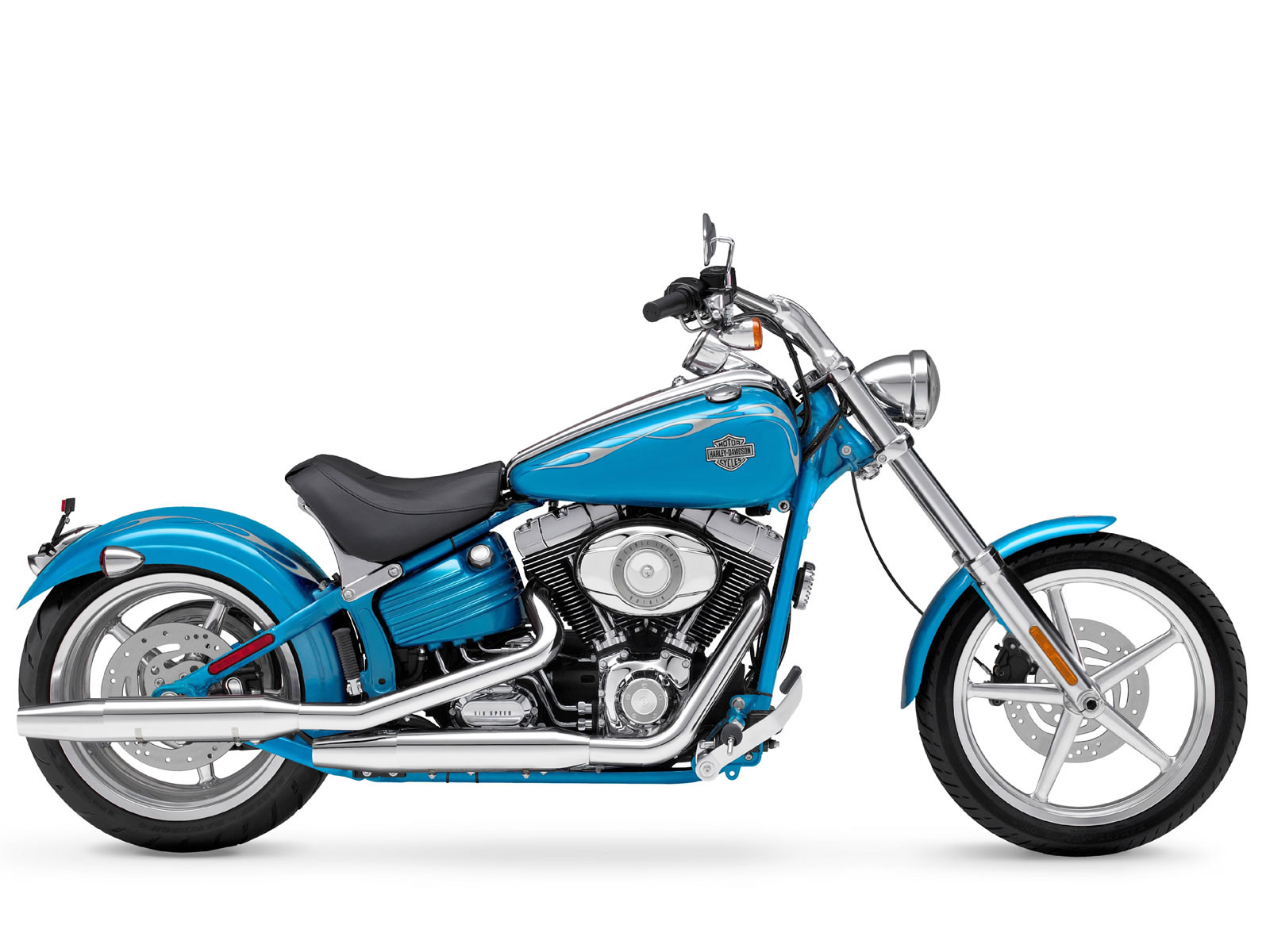

FXCWC Rocker C (2011) Pictures.
- .. -
Harley Davidson
FXCWC Rocker C (2011)

HARLEY DAVIDSON Models >

Click Thumbnail to download (size 1600 x 1200 pixels)



With breakthrough design features like a rear fender mounted directly to the swingarm and no visible fender supports, the Rocker C motorcycle is a slammed, sleek and stylish stunner straight from the factory. Chromed out from front to back, it faithfully reproduces the authentic lines of rigid-suspension customs, but delivers a modern, comfortable ride. Designed to turn heads, the Rocker C model boasts style elements like a color-matched frame and swingarm, dual, staggered shorty exhaust, LED stop/turn/tail lights, a raked-out front fork and ultra-wide rear tire. Perhaps its most notable feature, though, is the innovative solo-style Trick™ seat, which conceals struts and a passenger pillion to convert to two-up riding whenever the opportunity presents itself. Add in the exclusive ghost flame paint scheme, and the availability of anti-lock brakes with the new Security Package option, and you have an unbeatable combination of style and function.........Features and pecifications >



Auto Accident Lawyers Information

Law offices of Mark E. Salomone
www.marksalomone.com


Mark E. Salomone Means Business
Our Springfield, Boston, and Worcester-area Personal Injury Lawyers Will Fight for You.

In Massachusetts and throughout New England, the Law Offices of Mark E. Salomone is known for providing aggressive, powerful representation, and opposing counsel know that our personal injury lawyers mean business. With our respected trial attorneys on your side, you can be sure that your rights will be protected with fierce, unrelenting determination.

When you have suffered serious injury due to the negligence of another party, it is important to have someone on your side that is ready to fight for the compensation you deserve. Our personal injury lawyers will get you the money to which you are entitled so that you can focus on your recovery and carry on with your life. And, you do not pay unless we win.

We will fight for compensation for your:

= Car and truck accidents = Motorcycle accidents = Dog attacks = Slip and falls = Medical malpractice = Brain injury = Spinal cord injuries = Workers' compensation = Other personal injuries =

Personal Injury Law Articles
Personal Injury, Accidents & Personal Injury, Car/Auto Accidents, Dangerous Products/Product Liability, Mass Accidents, Medical Malpractice

Contact the Law Offices of Mark E. Salomone to consult with one of our experienced personal injury lawyers. With decades of collective trial experience and an impressive record of verdicts and settlements, we are proud to serve residents of Springfield, Boston, Worcester, and the entire Commonwealth of Massachusetts.

Our personal injury lawyers are also pleased to work with out-of-state clients. Wherever you are from, if you have been injured by someone else's wrongful actions, you can trust us to fight for your rights and work tirelessly to secure the compensation that you need - and deserve

U.S. Car Insurance Companies >


2011 FXCWC Rocker C Motorcycle accident lawyers informations

Harley Davidson
FXCWC Rocker C (2011)
- Features and Specifications -
Pictures >

Harley-Davidson FXCWC Rocker C Model Highlights
NEW Security Package option including factory-installed Harley-Davidson Smart Security System with hands-free fob and Anti-Lock Braking System (ABS)
NEW Hand controls with fewer wires
NEW Odometer trip switch
NEW Single button hazzard warning
NEW Larger odometer readout with gear and RPM display
o Black powder-coated powertrain with chrome covers
o Chrome exhaust with dual staggered shorty mufflers
o Polished, Cast Aluminum Tapered Five Spoke wheels
o 240 mm rear tire
o Finned cast-aluminum oil tank
o Trick two-in-one seat with concealed passenger pillion
o Chrome adjustable independent internally-wired V-Bar, set in two-piece 5-inch curved riser
o Console-mounted speed shop style speedometer
o Color-matched frame, swingarm and oil tank
o Chrome bullet headlight and fork lowers
o Skinny custom front fender
o Rockertail rear section
o LED brake, turn and tailights
o Deluxe pinstripe flames paint scheme

Key Harley-Davidson FXCWC Rocker C Key Features
With breakthrough design features like a rear fender mounted directly to the swingarm and no visible fender supports, the Rocker™ C motorcycle is a slammed, sleek and stylish stunner straight from the factory that looks and rides like nothing before it. Chromed out from front to back, it faithfully reproduces the authentic lines of rigid-suspension customs, but delivers a modern, comfortable ride.

Designed to turn heads, the Rocker C model boasts style elements like a color-matched frame and swingarm, dual, staggered shorty exhaust, LED stop/turn/tail lights, a raked-out front fork and ultra-wide rear tire. The Rocker C is everything people said a stock Harley-Davidson® model couldn't be.
Perhaps its most notable feature, though, is the innovative solo-style Trick™ seat, which conceals struts and a passenger pillion to convert to two-up riding whenever the opportunity presents itself.

Add it the exclusive ghost flame paint scheme, and the availability of anti-lock brakes with the new Security Package option, and you have a combination of style and function that beats any custom-style chopper on the market.

o Rigid-mounted, counter-balanced Twin Cam 96B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
o 6-Speed Cruise Drive® Transmission
o Horseshoe oil tank
o Forward foot controls
o 4.9 gallon fuel tank

Specifications
U.S. MSRP - Vivid Black $19,499 (Deluxe). Solids $19,874 (Deluxe)

DIMENSIONS
Length 95.0 in. (2413 mm)
Overall Width 35.1 in. (892 mm)
Overall Height 46.0 in. (1168 mm)
Seat Height:
• Laden2 25.2 in. (640 mm)
• Unladen 27.4 in. (696 mm)

Ground Clearance 5.1 in. (130.0 mm)
Rake (steering head) 36°
Fork Angle 37°
Trail 6.2 in. (157 mm)
Wheelbase 69.2 in. (1758 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear):
• Front – D408F 90/90-19
• Rear – D407 240/40R18

Fuel Capacity 4.9 gal. (18.5 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
• As Shipped 686 lbs. (311.0 kg)
• In Running Order 717 lbs. (325.0 kg)
• Gross Vehicle Weight Rating 1175 lbs. (533.0 kg)
• Gross Axle Weight Rating:
• Front 415 lbs. (188.0 kg)
• Rear 760 lbs. (345.0 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 96BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.311
• 2nd 6.454
• 3rd 4.793
• 4th 3.882
• 5th 3.307
• 6th 2.79

CHASSIS
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 49 mm telescopic
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Polished, 5-spoke Cast Aluminum
• Front 19 in. x 2.15 in. (483 mm x 55 mm)
• Rear 18 in. x 8 in. (457 mm x 203 mm)
Brakes:
• Caliper Type 4-piston front and 2-piston rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors
• Front 11.5 in. x .2 in. (292 mm x 5 mm)
• Rear 11.5 in. x .23 in. (292 mm x 6 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 3.1 in. (79 mm)

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 92.2 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM)
Lean Angle:
• Right 26.8°
• Left 26.8°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Stop/Turn/Tail Lights Integrated LED
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8 (optional), 6-speed, low fuel warnings

COLOR OPTIONS
Solids

• Vivid Black Deluxe
• Scarlet Red Deluxe
• Cool Blue Pearl Deluxe
• Black Denim Deluxe



Auto Accident Lawyers Information

Law offices of Mark E. Salomone
www.marksalomone.com


Mark E. Salomone Means Business
Our Springfield, Boston, and Worcester-area Personal Injury Lawyers Will Fight for You.

In Massachusetts and throughout New England, the Law Offices of Mark E. Salomone is known for providing aggressive, powerful representation, and opposing counsel know that our personal injury lawyers mean business. With our respected trial attorneys on your side, you can be sure that your rights will be protected with fierce, unrelenting determination.

When you have suffered serious injury due to the negligence of another party, it is important to have someone on your side that is ready to fight for the compensation you deserve. Our personal injury lawyers will get you the money to which you are entitled so that you can focus on your recovery and carry on with your life. And, you do not pay unless we win.

We will fight for compensation for your:

= Car and truck accidents = Motorcycle accidents = Dog attacks = Slip and falls = Medical malpractice = Brain injury = Spinal cord injuries = Workers' compensation = Other personal injuries =

Personal Injury Law Articles
Personal Injury, Accidents & Personal Injury, Car/Auto Accidents, Dangerous Products/Product Liability, Mass Accidents, Medical Malpractice

Contact the Law Offices of Mark E. Salomone to consult with one of our experienced personal injury lawyers. With decades of collective trial experience and an impressive record of verdicts and settlements, we are proud to serve residents of Springfield, Boston, Worcester, and the entire Commonwealth of Massachusetts.

Our personal injury lawyers are also pleased to work with out-of-state clients. Wherever you are from, if you have been injured by someone else's wrongful actions, you can trust us to fight for your rights and work tirelessly to secure the compensation that you need - and deserve

U.S. Car Insurance Companies >


Followers
